IEEE 1588 PTP Features

• IEEE 1588v2 PTP (Precision Time Protocol) with hardware time stamping for precise time synchronization of networks
• Support both IEEE 1588 Boundary Clock and Transparent Clock
• Support both End to End (2-step) and Peer to Peer (2-step) modes
in Transparent Clock
• High precision time accuracy (under 1 μs)

Features and Benefits

• Command Line Interface (CLI) for quickly configuring major managed functions
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP, Modbus/TCP and PROFINET protocols for device management and monitoring
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
• QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
• RMON for efficient network monitoring and proactive capability
• SNMPv1/v2c/v3 for different levels of network management security
• Bandwidth management to prevent unpredictable network status
• Port mirroring for online debugging

Introduction

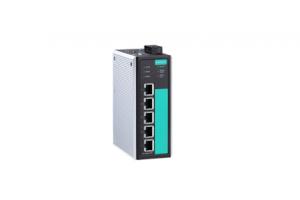

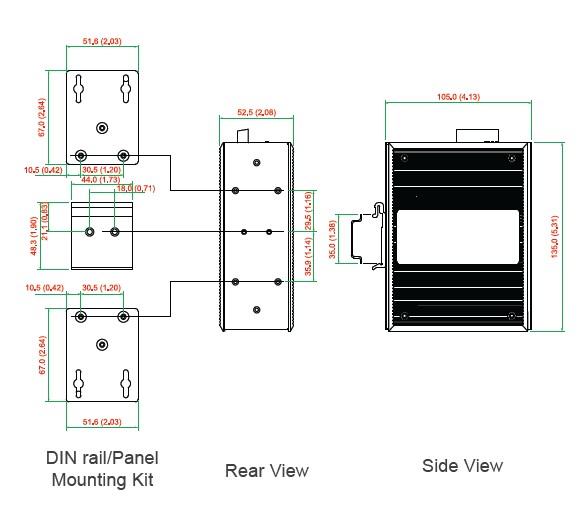

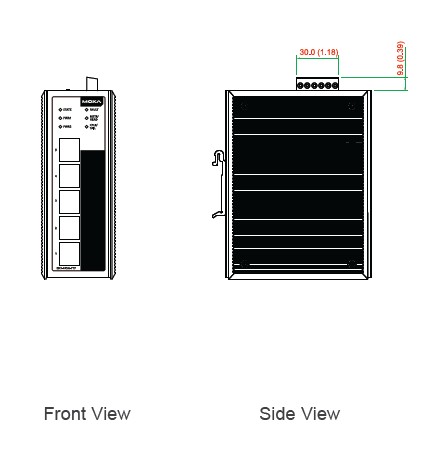

The EDS-405A-PTP are 5-port IEEE 1588v2 PTP switches designed especially for real-time control applications. The switches support Modbus TCP, PROFINET RT, and EtherNet/IP for better SCADAintegration. Other management functions such as IGMP snooping, IEEE 802.1Q VLAN, QoS, RMON and relay warning, make the network planning more flexible and easy.
